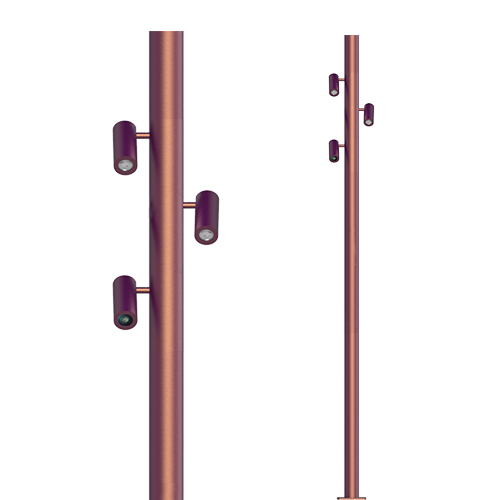

| Description | LED Spotlight 12/24/36W / - 2200K |
| Housing | Aluminum |
| Lamp Brand | Philips |
| Application | Smart pole |
| Light Source | LED |
| Adjustable angle | 355° |
| Weight (Kg) | 7 |
| Body Color | RAL 4007 |
| Product Dimensions[mm] | H300 x Ø140 mm |
| Operating temperature[Degree Celsius] | -10℃~55℃ |
| Dimming | DALI-1 |
| Cooling | Passive |
| Driver | Philips |
| Chips | Philips |
| Surge Protection | 1/2 kV (optional SP10 10 kV) |
| Impact Resistance | Impact resistance IK07 |
| Tightness Level | IP66 |
| Electrical Class | Class I |
| General Warranty [Year] | Performance Data |
| System power [W] | 12/ 24 / 36 |
| Nominal luminous flux [lm] | 1372 / 2780 /4186 |
| Rated efficacy [lm/W] | Rated efficacy [lm/W] 110 |
| IP front (optical) | 66 |
| IP back (electrical) | 66 |
| IP Rating | 66 |
| Photometric distribution | Wide |
| Nominal correlated colour temperature (CCT) [K] | 2200 |
| Colour rendering index (CRI) [Ra] | Colour rendering index (CRI) [Ra] 80 |
| Nominal beam angle [°] | 15/25/35/60 |
| IEC protection class | Class I |
| Rated frequency or frequency range [Hz] | 50/60Hz |
| Operating voltage [V] | 220-240V |
| lmage Sensor | 1/1.8" Progressive Scan CMOS |
| Min.Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Max. Resolution | 3840x2160 |
| Day & Night | IR cut filter Angle Adjustment Pan: 0° to 360° , tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° 4 mm, horizontal FOV 90.0°, vertical FOV 45.8, diagonal FOV 109.4° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Dori | 2.8mm: D: 89 m, O: 35 m, R:17 m,l: 8 m 4mm: D: 109 m, O: 43 m, R: 21 m, l: 10 m |
| Open Resources | Memory: 40 MB Smart RAM:350 MB eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
| Programming Language | C, C++ |
